Durkopp Adler H867

Single Needle Automatic Lockstitch

The H867 is a reinforced flatbed lockstitch machine from the medium-heavy M‑TYPE series, ideal for demanding industrial sewing tasks. Engineered for heavy materials and high-thread resilience, this powerful machine combines precision, flexibility, and reliability in one robust platform.

Wide and high clearance: 335 mm flatbed width (or 700 mm for long-arm versions) and 160 mm height allow easy handling of large or bulky materials.

Triple-feed system: Combines bottom feed, needle feed, and alternating top feed for consistent material control across varying thicknesses.

Long stitch capability: Up to 12 mm stitch length—ideal for heavy seams and decorative topstitching.

High foot lift: Up to 25 mm lift, simplifying loading and unloading of large or bulky workpieces.

Substantial foot stroke: 9 mm foot stroke supports seamless transition over layered material surfaces.

3XL vertical hook system: Accommodates threads up to Nm 8/3 with greatly increased bobbin capacity.

Robust thread trimmer: Ensures clean and reliable cutting of thick sewing threads (in CLASSIC variants).

Strong stitching speed: Up to 1,800 stitches per minute—delivering both power and efficiency.

Network-ready controls: Powered by the DAC classic system with OP1000 panel, Industry 4.0 compatible.

 ECO and CLASSIC variants:

• ECO: Basic yet durable with electropneumatic foot lift.
• CLASSIC: Adds auto backtacking, thread trimming, LED lighting, maintenance indicator, and ergonomic keypad.

Twin-needle models available: Click here for the Durkopp Adler H867 twin-needle models.

Safety and functional seams in technical textiles

Decorative single felled seams in the upholstery production

High-quality decorative stitching operations

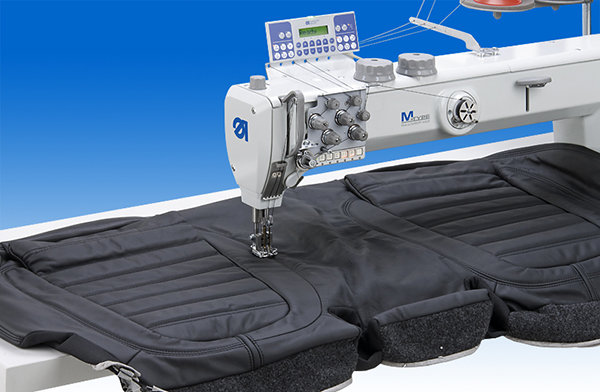

Stitching through large area upholstered pieces

Features

= Standard    = Optional
