Durkopp Adler H867

Twin Needle Automatic Lockstitch

The Durkopp Adler H867 Twin-Needle is a robust and versatile industrial lockstitch machine designed for demanding medium-heavy duty sewing applications. Built on the proven M-TYPE platform, this twin-needle version delivers reliable performance on thick and multi-layer materials, making it ideal for technical textiles, upholstery, leather goods and other challenging fabric assemblies.

Twin-needle lockstitch capability: for reinforcement seams and parallel stitching, expanding your production options compared with single-needle models.

Triple feeding system: combining bottom feed, needle feed and alternating top feed for secure and consistent material transport through heavy layers.

Generous working space: under the arm with ample clearance, allowing easy handling of large or bulky pieces.

High stitch length: up to 12 mm for both standard joining and decorative topstitching.

Impressive sewing foot lift: up to 25 mm that accommodates thick and uneven assemblies.

Maximum sewing speed up to 1,800 st/min: supporting efficient throughput.

Single-needle models available: Click here for the Durkopp Adler H867 single-needle models.

The large clearance, 335 mm wide (long arm version 700 mm) and 160 mm high facilitates the handling of large area workpieces

Powerful and effective feeding system with bottom feed, needle feed and alternating top feed

Up to 12 mm long stitches for standard seams and decorative topstitching

The extremely high sewing foot lift up to 25 mm facilitates the feeding and removing of bulky workpieces

The sewing foot stroke up to 9 mm allows the safe climbing over differently high material plies

New hook system with 3XL bobbin for thread sizes up to Nm 8/3 max.

Max. sewing speed up to 1,800 stitches/min

Robust thread trimmer guarantees a safe and clean cutting of extremely thick sewing threads

Sewing drive with networkable DAC classic control incl. operating panel OP1000 – Industry 4.0 "ready"

Single needle or twin needle available

Up to 12 mm long stitches for standard seams and decorative topstitching

The extremely high sewing foot lift up to 25 mm facilitates the feeding and removing of bulky workpieces

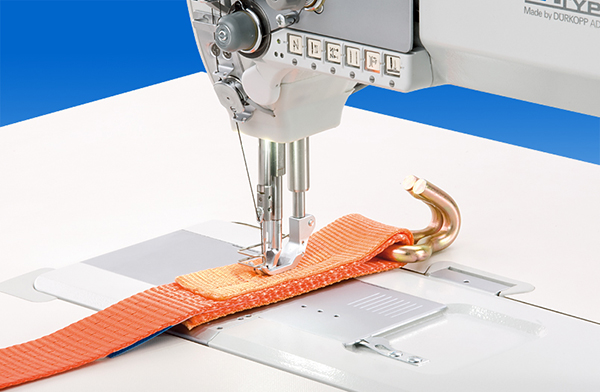

Safety and functional seams in technical textiles

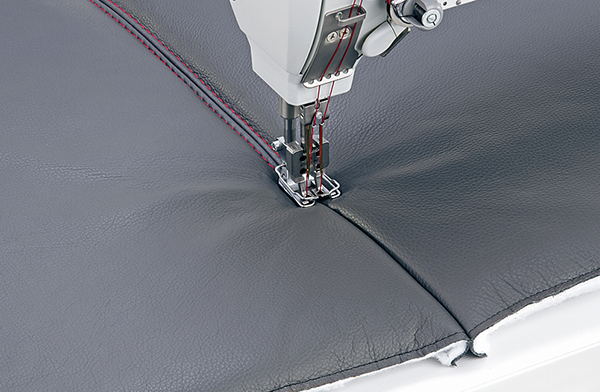

Decorative single felled seams in the upholstery production

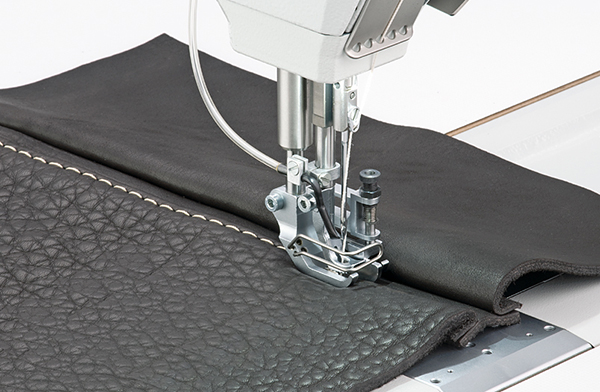

High-quality decorative stitching operations

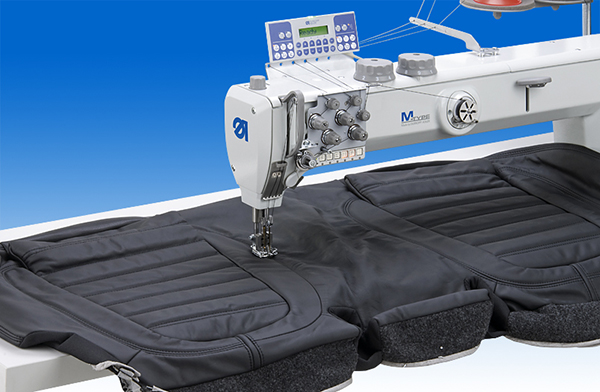

Stitching through large area upholstered pieces

Features

= Standard    = Optional
