ZSK SPRINT 7XL

SKU

SPRINT7XL

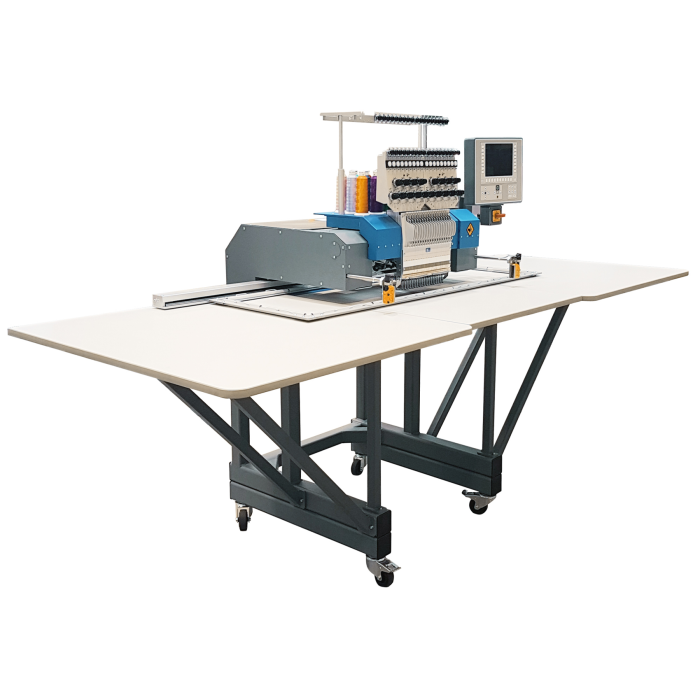

The ZSK Sprint 7XL is a high-performance, 18-needle single-head industrial embroidery machine, engineered for large-scale embroidery projects. With an expansive embroidery field of 1,400mm x 400mm, it's ideal for items like banners, flags, towels, and tablecloths.

Overview

ZSK Sprint 7XL

18-Needle Industrial Embroidery Machine with 1,400 x 400 mm Field

The ZSK Sprint 7XL is an advanced 18-needle single-head embroidery machine featuring an extra-wide embroidery field of 1,400 x 400 mm, making it ideal for large-format production such as banners, flags, tablecloths, towels, and other oversized textiles.

Designed for high-output commercial use, it supports tubular, cap, and border frame embroidery and includes ZSK’s slimmest tubular arm for fine detail work on small items like pockets and footwear.

Running at up to 1,200 stitches per minute, the Sprint 7XL combines speed with durability and precision. Its picker-free design helps prevent fabric damage, while the upgraded T8-2 controller enables streamlined workflow integration and real-time editing.

Built with premium German engineering, the 7XL is suited to demanding embroidery environments requiring high-capacity, scalable output.

Features

Main features

Single head
18 needles/colours
Embroidery speed 1,200 stitches/min.
Embroidery width 1400mm
Automatic thread cutter
Smallest tubular arm of industrial embroidery
Upper and lower thread guard
Automatic reverse embroidery function
Height-adjustable fabric presser
Contouring with lowered needle
Low noise and low weight
T8-2 control unit
Integrated design editor
Accepts all common industrial embroidery codes
Storage for approx. 80 million stitches
Automatic fault analysis
Windows based networking
Built and designed for 24/7 production
High value retention
Made in Germany

T8-2 Control terminal

Intuitive and logical user guidance
Ready for networking
Accepts all common industrial embroidery codes
Can be operated in 14 languages
Storage for up to 80 million stitches
Barcode capability

Options

Our ZSK embroidery machines provide endless possibilities

Flat embroidery

Flat embroidery with border frame meets the highest demands in all application areas. Flat stitch offers almost endless possibilities to optimally present your motif.

Cap

The cap extension allows you to efficiently implement your ideas in the capstick area and thus the production of individual caps in small series.

Shoes

Embroidering a sports shoe with its name, the name of your favourite team or your favourite player makes it a unique and very personal object.

Name Badges

With the help of the stencil template frame, name badges can be created efficiently, through simple handling and with little effort with different or even the same names.

Shirt Pockets

The embroidery of shirt pockets with personal initials, a company logo or fashionable application individualizes the garment and is an expression of personality or corporate identity.

Tubular

Embroider on most standard garments and textiles with the Premium Allied Grid-Lock plastic tubular frames, available in various sizes.

HoopMaster Magnetic

HoopMaster Magnetic frames use strong magnets to clamp over difficult items such as seams, zippers, velcro and more. No need to worry about clamping anymore.

Cylinder

Use the cylinder frame especially for embroidering around closed parts, such as jacket sleeves, socks, gloves, bracelets etc., and to process names, logos or fashionable applications.

Sequins

With unique precision and an outstanding 1,000 stitches per minute you not only embroider sequins in different sizes, but also rhinestones to the most beautiful designs.

Beads/pearls

With this latest development, you can now also expand the possibilities with pearl embroidery and increase the appearance of your designs even more.

Cording

Vary not only with colors, but also with cords in different strengths and structures. Give your patterns an exciting look and feel.

Boring

Using a knife, a small hole is automatically cut, which allows the needle and thread to be enlarged and repackaged, thus increasing the value of your designs.

Additional Attachments

Our ZSK embroidery machines can be adapted with additional attachments

Twin Sequin Device T7 (2-9mm)

Single Sequin Device V6.1 (3-9mm)

Single Sequin Device V9 (3-19mm)

Head Selection

Strass Sequin Device

Functional Sequin Device

Thick Thread Option

Light Barrier

Cording Device EP-1.2

Cord / Loop Device

Machine Status Light

Boring Device

Hot Air Cutting Device

Bead Device

Automatic Bobbin Changer

Roll2Basket

Specifications

Technical Data - Machine
Heads	1
Needles	18
Pantograph Travel max. [mm]	1400
Max. Stitches Tubular / Flat [mm]	1000
Max. Stitches Cap [mm]	1000
Width [mm]	2925
Depth [mm]	1220
Height [mm]	1640
Power Supply [V]	230
Connected Load [Watt]	220
Net Mass [Kg]	-

Technical Data - Embroidery Field
Width [mm]	1400
Depth [mm]	400
Border Frame max. [mm]	1400 x 400
Tubular max. [mm]	-
Cap 360 max. [mm]	360 x 70
Shoes max [mm]	124 x 175
