Single-Needle Lockstitch Machine

A robust and proven triple‑feed flatbed lockstitch machine designed for industrial sewing of medium-weight materials such as upholstery, leather goods, and technical textiles. Its durable construction and versatile feed system ensure reliable performance and consistent seam quality in heavy-duty applications.

Request a quote

ZSK BLUE TICK ICON 1 Triple-feed system: Combines bottom feed, needle feed, and alternating top feed for exceptional material control and seamless crossing of transverse seams.

ZSK BLUE TICK ICON 1 High sewing foot stroke: Enables traversal over bulky materials with ease.

ZSK BLUE TICK ICON 1 Vertical large hook: Designed for heavy-duty sewing threads with increased bobbin capacity.

ZSK BLUE TICK ICON 1 Standard safety clutch: Protects against hook damage or timing misalignment during thread breakage or jamming.

ZSK BLUE TICK ICON 1 Reliable, low-maintenance build: Known for durability and a strong price-to-performance ratio.

Key Features & Benefits

Good seam quality and strong material feeding due to triple feed with alternating sewing feet

Robust and proven construction

Good cost-performance ratio

Optimum sewing results, even on the finest materials

Multi-function push button bar for quick access

Improved stitch formation and flat seams due to extremely low thread tensions

Especially smooth and soft running

Integrated, dimmable LED sewing light as standard

Examples of use

DA 261 140342 01 A ap ladies wear cmyk 0486DA 261 140342 01 A ap ladies wear cmyk 0486

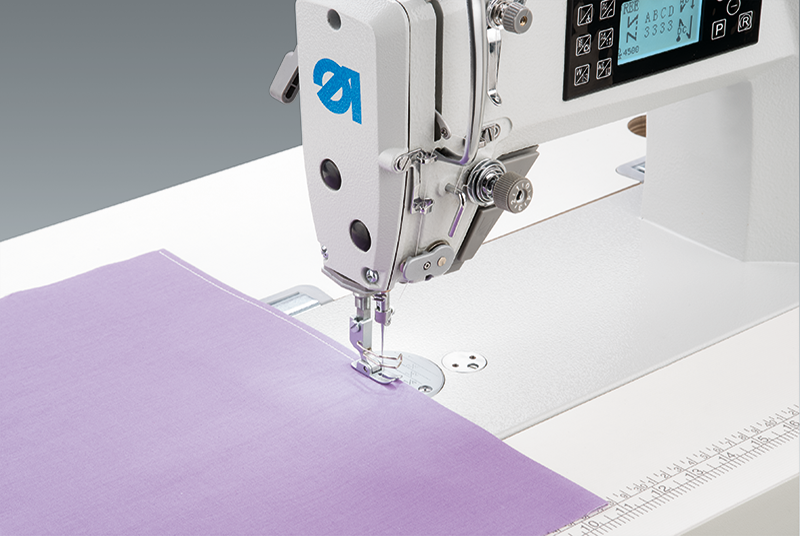

Runstitch and trim collars and cuffs

272 App.3272 App.3

Topstitching seams

DA 261 140342 01 A ap ladies wear cmyk 0486 1DA 261 140342 01 A ap ladies wear cmyk 0486 1

French Sleeve Seams

272 160362 01 ap 2272 160362 01 ap 2

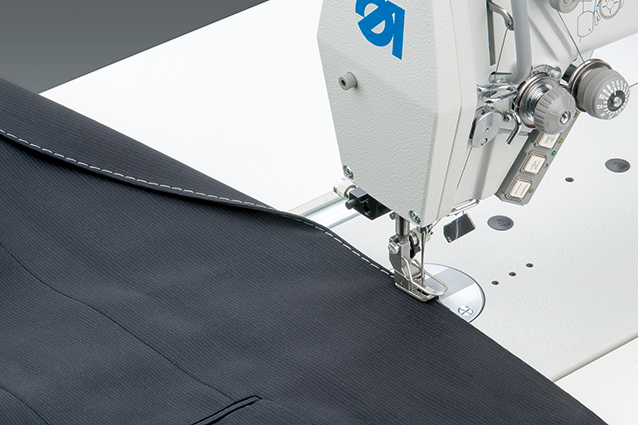

Finishing outside pockets of men's jackets

272 160362 01 ap 3272 160362 01 ap 3

Decorative stitching

272 640642 01 ap chest 1 Kopie272 640642 01 ap chest 1 Kopie

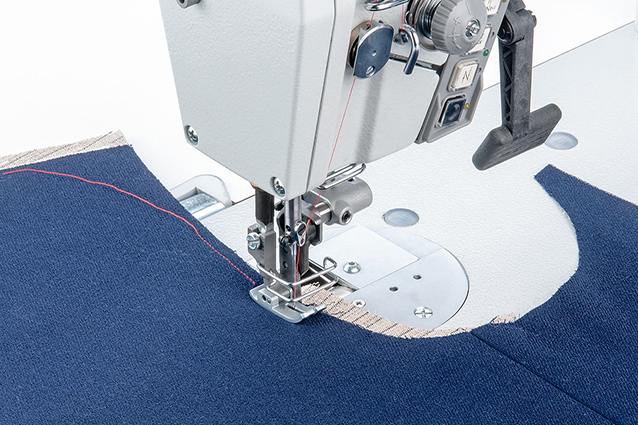

Attaching and simultaneously cutting the chest piece

272 740642 01 ap 3272 740642 01 ap 3

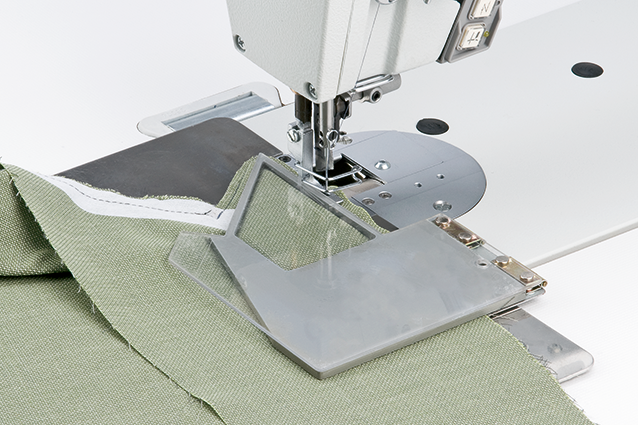

Runstitch and trim peak lapel and small parts

272 640642 ap 2272 640642 ap 2

Attaching waistbands with simultaneously cutting the edges

Specification

Features

Subclass Stitch length [mm] max. Stitches/min Sewing material Single needle Lockstitch (301) Vertical hook, large (L, Ø 26mm) Bottom Feed, needle feed and alternating foot top feed Stroke of the alternating sewing feet [mm] max. Clearance when Sewing/Lifting [mm] max.
267-373 6 1700 Medium - Medium Heavy ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 5 S=6 / L=10

Technical

Subclass Needle System Needle Size [NM] max. Thread Type* **
[Tkt.] max.
Flat bed machine with clearance Nominal voltage [V, Hz] Rated power [W] max. Weight, sewing head only [Kg] Packagin size (LxWxH) [mm]
267-373 134-35 110-140 80/3 - 20/3 C= 285 / D = 115 1x230V, 50/60 Hz 500 41 790x370x790

* Max. thread size upper thread: Tkt. 10/3, max. thread size bobbin thread: Tkt. 20/3
** Max. thread size upper thread: Tkt. 15/3, max. thread size bobbin thread: Tkt. 40/3
