Durkopp Adler D867 DELTA e-con

DA Logo 4c Print 13DA Logo 4c Print 13
D867 190942 title 1 800 1D867 190942 title 1 800 1

Twin Needle Automatic Lockstitch

The Durkopp Adler D867 e-con Twin Needle is a fully digitalised, medium-to-heavy-duty flat-bed sewing machine designed for efficient, sustainable and reproducible production sewing. Built on the advanced DELTA e-con platform, it combines precision sewing kinematics with intelligent control technology to deliver consistent quality across demanding applications.

Download Brochure
Request a quote

ZSK BLUE TICK ICON 1 Wide and ergonomic sewing area: Generous flat-bed working space provides improved handling of medium- to heavy-weight materials and larger components.

ZSK BLUE TICK ICON 1 Twin-needle configuration: Designed for precise, parallel seams, enabling consistent twin-row stitching in a single operation for increased productivity and seam accuracy.

ZSK BLUE TICK ICON 1 Optimised feed system: Advanced Durkopp Adler sewing kinematics ensure reliable material transport and uniform stitch formation across varying material thicknesses.

ZSK BLUE TICK ICON 1 DELTA e-con drive concept: A highly energy-efficient digital platform significantly reduces power consumption compared with conventional electronically controlled machines.

ZSK BLUE TICK ICON 1 Electronically controlled sewing parameters: Digital control of stitch length, thread tension and sewing functions ensures reproducible results and rapid style changes.

ZSK BLUE TICK ICON 1 Large vertical hook system: High-capacity hook supports extended sewing intervals and stable stitch formation on demanding materials.

ZSK BLUE TICK ICON 1 Commander DELTA control panel: Intuitive multi-touch user interface allows quick parameter adjustment, programme storage and simplified operator training.

ZSK BLUE TICK ICON 1 High sewing performance: Delivers powerful, stable stitching at industrial production speeds, depending on configuration and application.

ZSK BLUE TICK ICON 1 Industry 4.0 readiness: Interfaces allow networking, data exchange and optional integration into digital production and monitoring systems.

ZSK BLUE TICK ICON 1 Twin-needle model focus: Supplied exclusively as a twin-needle variant for applications requiring parallel seams and consistent visual appearance.

ZSK BLUE TICK ICON 1 Single-needle models available: Click here for the Durkopp Adler D867 e-con single-needle models.

Key Features & Benefits

The DELTA e-con platform delivers energy-efficient, sustainable industrial sewing, reducing power consumption by up to 25% while maintaining high productivity and sewing quality.

M-TYPE technology with optimised sewing kinematics to deliver consistently high-quality stitch formation, even on demanding materials.



Intuitive operation and up to 30% shorter teach-in times due to the multi-touch control panel.

Automatic optimisation of sewing parameters during the sewing process via integrated material thickness detection MTD.

Efficiency and reproducibility using program-supported sewing and electronic control elements.

Flexible and future-oriented - The digital sewing system for the future.

Outstanding performance parameters.

Solid cast core in an innovative and service-friendly design.

Always on the safe side - with DELTA Poka Yoke Equipment

Programmable height-adjustable work tables (optional).

Available as a longarm machine. Best seam quality and ergonomics due to extended clearance, even for large area workpieces.

Intermittent or continuous puller transport ensures perfect material transport for transport-critical and large-area sewing materials.

Examples of use

AdobeStock 158321138 2AdobeStock 158321138 2

Flexible sewing applications in medium-heavy duty materials

D867 290945 ap automotive 0155 kopieD867 290945 ap automotive 0155 kopie

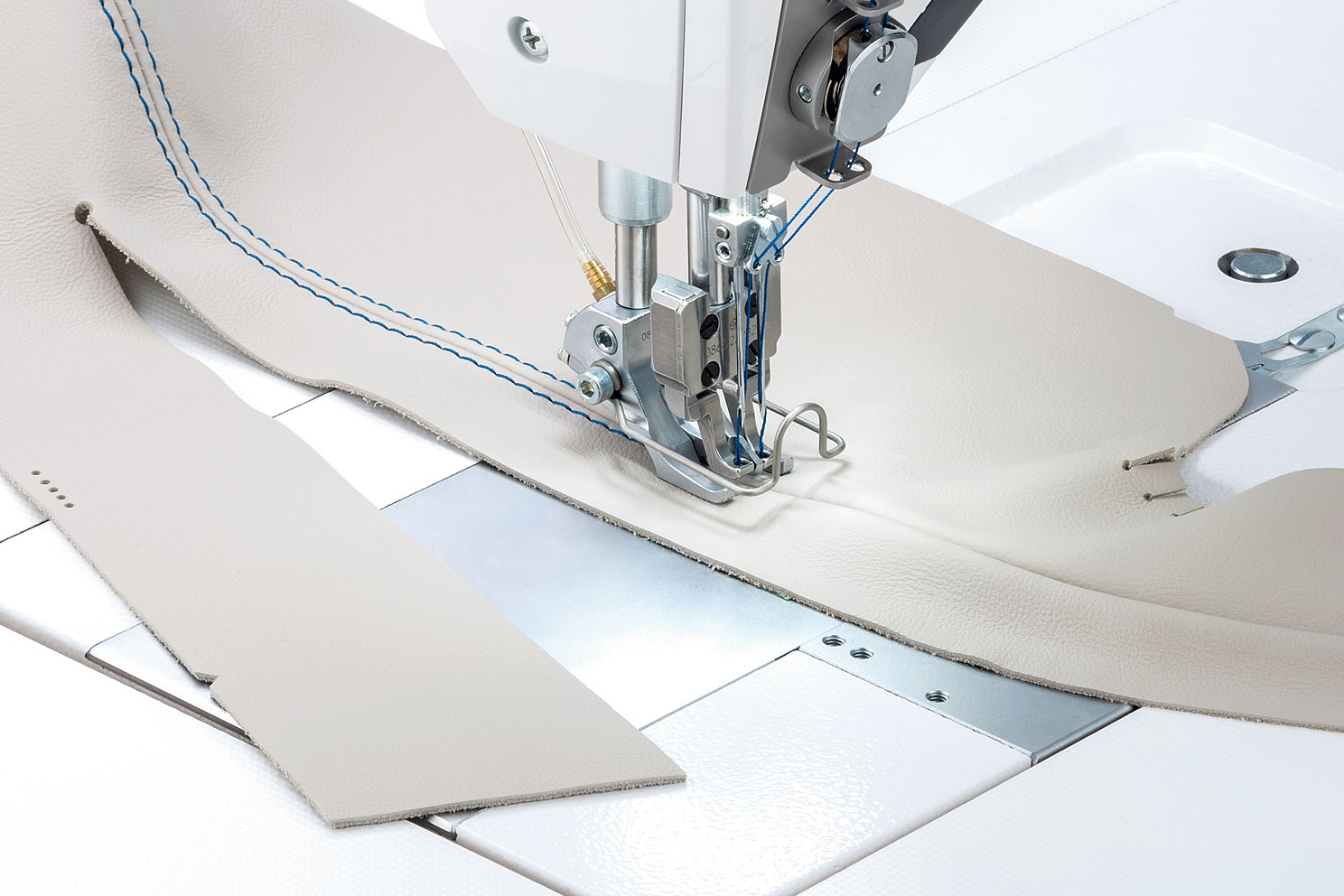

Automotive seating - Decorative and assembly seams

AdobeStock 327382757 2AdobeStock 327382757 2

Automotive interior - Decorative and assembly seams

AdobeStock 463647368 1AdobeStock 463647368 1

Safety-related seams in airbags and seat belts

Csm D867 190945 ap leather 040 47731009c6 1Csm D867 190945 ap leather 040 47731009c6 1

Leather applications and luxury accessories - Decorative and assembly seams

D867 sample MDT 0307 2 kopie 2D867 sample MDT 0307 2 kopie 2

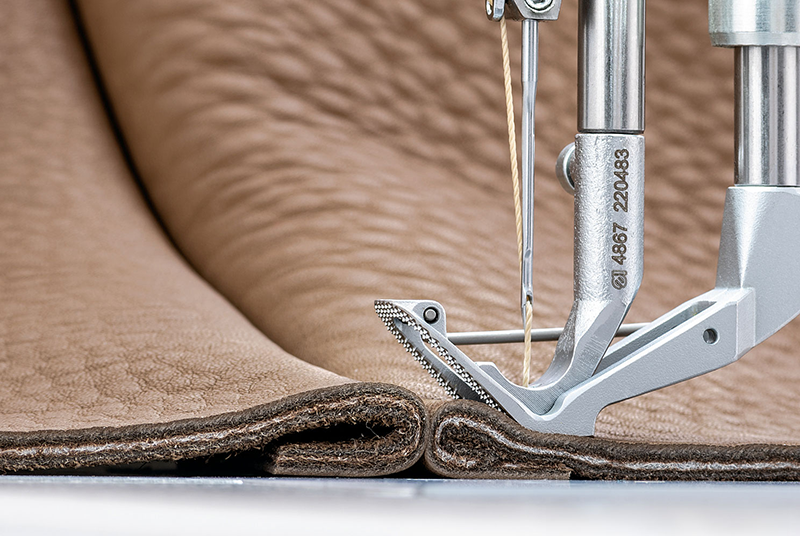

Upholstery - Decorative and assembly seams

AdobeStock 321582689 2AdobeStock 321582689 2

Processing of technical textiles

D867 290342 100 01 ap large parts puller HE 3597 1 800 1D867 290342 100 01 ap large parts puller HE 3597 1 800 1

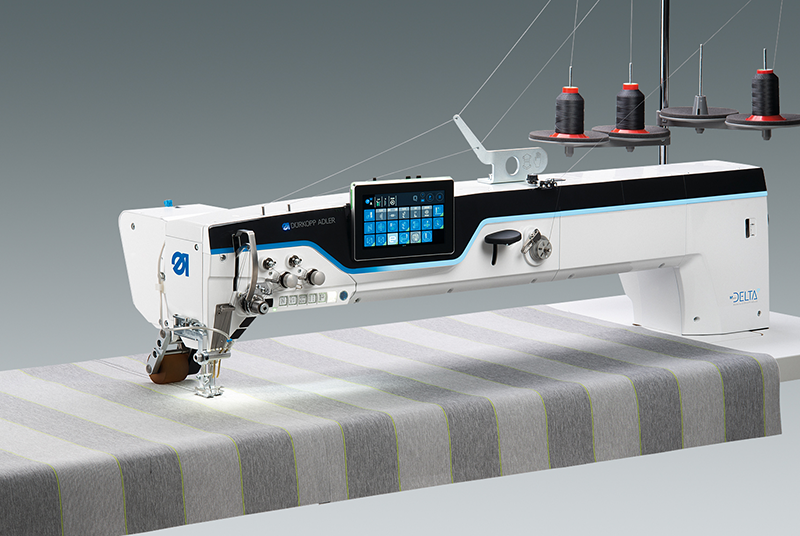

Large-area sewing material parts, e.g. awning or tent panels

Specification

Features

““ = Standard    OPTIONAL 15PX = Optional

  D867-290922-01 D867-290942-01 D867-290945-01
Stitch length [mm] max. 12 12 12
Stitches/min. 3500* 3500* 3500*
Sewing Material Medium - Medium Heavy Medium - Medium Heavy Medium - Medium Heavy
Twin needle ZSK BLUE TICK ICON 15PX ““ ““
Lockstitch (301) ““ ““ ““
Vertical hook, large (XL, Ø 28 mm) ““
Vertical hook, extra large (XXL, Ø 32 mm)   ““ ““
Bottom feed, needle feed and alternating foot top feed ““ ““ ““
Automatic thread trimmer** [mm] max. 15 15
Short thread trimmer [mm] max.     5
Thread nipper for a neat seam beginning OPTIONAL 15PX OPTIONAL 15PX ““
Bobbin thread monitor OPTIONAL 15PX OPTIONAL 15PX OPTIONAL 15PX
NSB – “Neat Seam Beginning”
SSD - “Skip Stitch Detection” OPTIONAL 15PX OPTIONAL 15PX OPTIONAL 15PX
MTD - Automatic material thickness detection ““ ““ ““
Stepper motor-driven stitch length adjustment with simultaneous speed limitation according to the feeding length ““ ““ ““
Stroke of the alternating sewing feet [mm] max. 9 9 9
Stepper motor-driven foot stroke and quick stroke adjustment ““ ““ ““
Clearance when Sewing/Lifting [mm] max. A= 10 / B= 20 A= 10 / B= 20 A= 10 / B= 18
Stepper motor-driven sewing foot lift and sewing foot pressure ““ ““ ““
Stepper motor-driven, programmable thread tension ““ ““ ““
Electronic needle positioning ““ ““ ““
Stepper motor driven electronical backtack OPTIONAL 15PX OPTIONAL 15PX OPTIONAL 15PX
Motor-driven bobbin winder ““ ““ ““
Storage capacity for setups/seam programs 999 999 999
Individual programmable complex seam sections 30 30 30
Program control, operating panel Commander DELTA ““ ““ ““
Underarm LED lighting with dimmer ““ ““ ““
Integrated LED sewing light with dimmer ““ ““ ““
Oil maintenance indicator ““ ““ ““
DA-sewing drive ““ ““ ““
Long arm versions available as a standard OPTIONAL 15PX OPTIONAL 15PX OPTIONAL 15PX
e-con ““ ““ ““

* Depending on foot stroke

** Approx. length of remaining thread

Technical

  D867-290922-01 D867-290942-01 D867-290945-01
Needle system 134-35 134-35 134-35
Needle size [NM] max. 90-180 90-180 90-160
Thread Type* ** [Tkt.] max. 80/3 - 10/3 80/3 - 10/3 80/3 - 15/3
Flat-bed machine with clearance [mm] C=350 / D=128 C=350 / D=128 C=350 / D=128
Nominal voltage [V], [Hz] 1x230V, 50/60 Hz 1x230V, 50/60 Hz 1x230V, 50/60 Hz
Rated power [W] max. 375 375 375
Dimensions (Length x Width x Height) [mm] 1060 x 600 x 1700 1060 x 600 x 1700 1060 x 600 x 1700
Weight (sewing head) [Kg] 56-58 56-58 56-58

* Max. thread size upper thread: Tkt. 10/3, max. thread size bobbin thread: Tkt. 20/3
** Max. thread size upper thread: Tkt. 15/3, max. thread size bobbin thread: Tkt. 40/3
