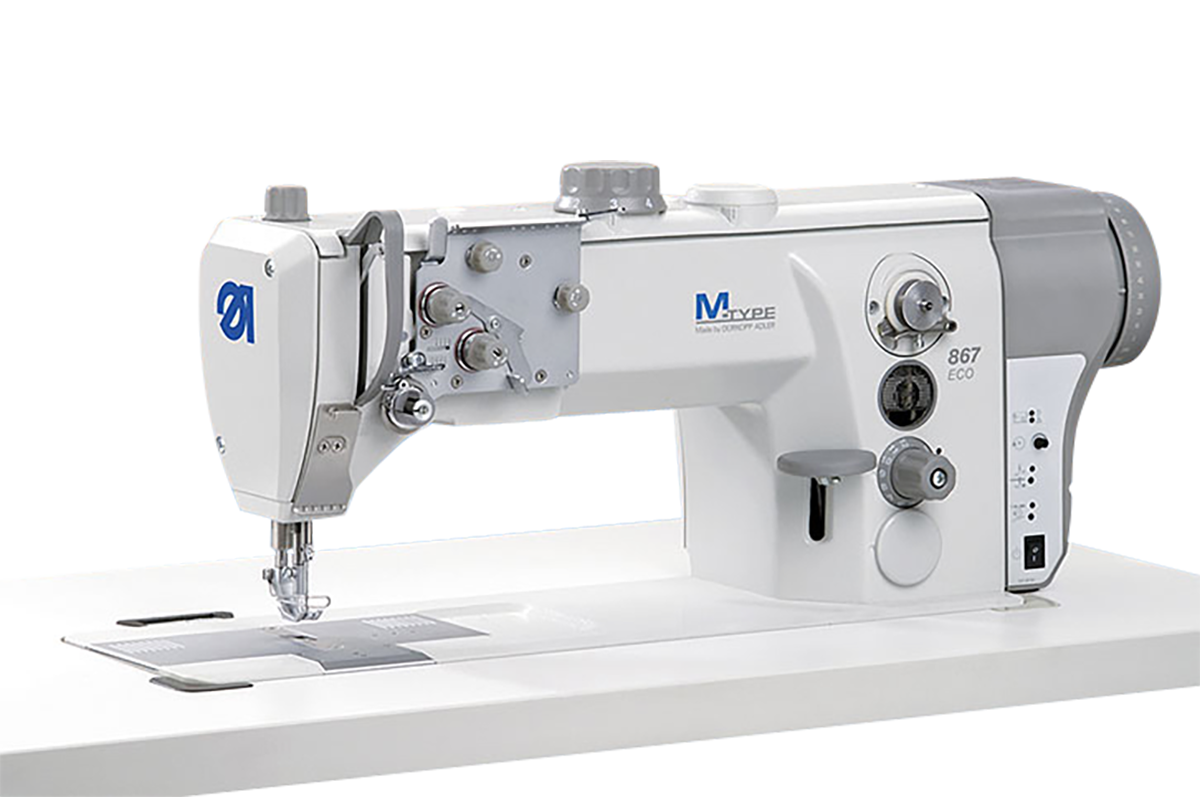

Twin Needle Automatic Lockstitch

The 867 ECO twin‑needle is a cost-efficient yet robust addition to the M‑TYPE flat‑bed lockstitch family. Designed specifically for precision in medium‑weight applications, it features a twin‑needle configuration, integrated needle‑feed, and a practical mechanical setup—ideal for industries demanding accuracy without complexity.

Request a quote

ZSK BLUE TICK ICON 1 Twin‑needle compatibility — supports double‑line stitching for enhanced productivity and consistent seam quality.

ZSK BLUE TICK ICON 1 Efficient fabric handling — triple feed system with bottom feed, needle feed, and alternating presser feet ensures neat, distortion‑free material transport.

ZSK BLUE TICK ICON 1 Exceptional value — high‑performance design at an attractive price point, suitable for demanding production environments.

ZSK BLUE TICK ICON 1 Hook options — choose between horizontal (L or XL) or vertical (XL or XXL) hooks, the latter offering up to 70% more bobbin thread capacity for extended runs.

ZSK BLUE TICK ICON 1 Extended arm clearance — long‑arm versions available to accommodate large workpieces and improve operator access.

ZSK BLUE TICK ICON 1 Enhanced visibility — built‑in, dimmable LED light brightens the work area and improves stitch accuracy.

Key Features & Benefits

Available as single & twin needle version

Good seam quality and strong material feeding due to triple feed with alternating sewing feet

Good cost-performance-ratio

LG Version: Special machine with differentiable binding device

Choice of horizontal hook (L or XL horizontal hook) for simplified bobbin changes and vertical hook for optimum processing of thicker sewing threads. Vertical hook available as XL or XXL hook for 70% increased bobbin thread capacity

Available as long arm machines. The extended clearance facilitates the handling of large-area workpieces and access to difficult to reach sewing areas

Convincing price-performance ratio

Integrated, dimmable LED sewing light as standard

Examples of use

867 190020 M ap 1 Kopie867 190020 M ap 1 Kopie

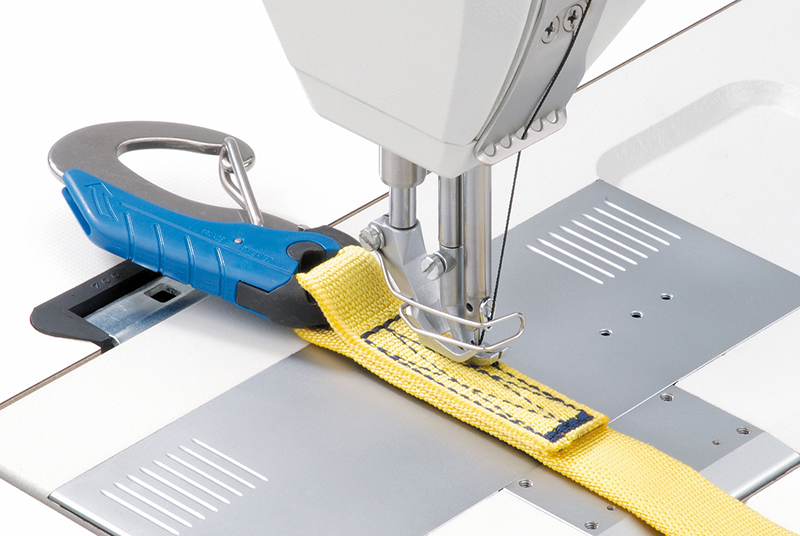

Flexible use in belt production

867 290342 appl 2867 290342 appl 2

Decorative topstitching of upholstered furniture covers

867 190040 70 M ap 2867 190040 70 M ap 2

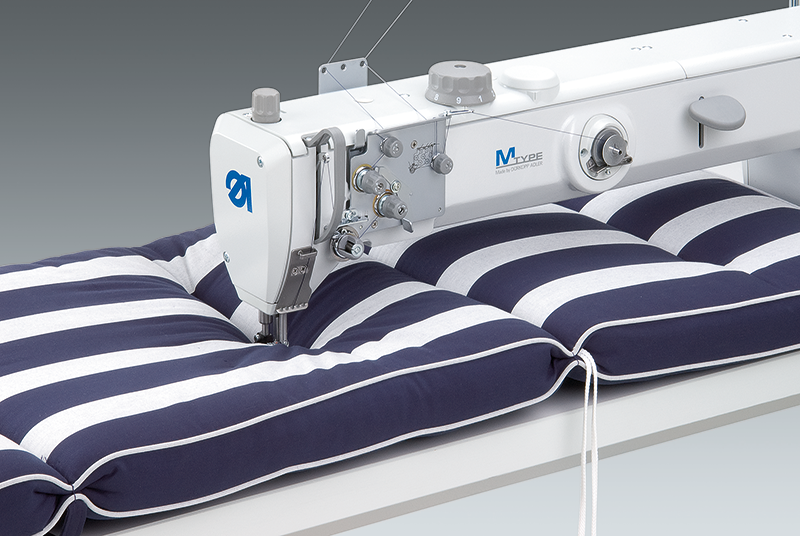

Through-stitching seams in seat cushions

667 180010 ap big bag667 180010 ap big bag

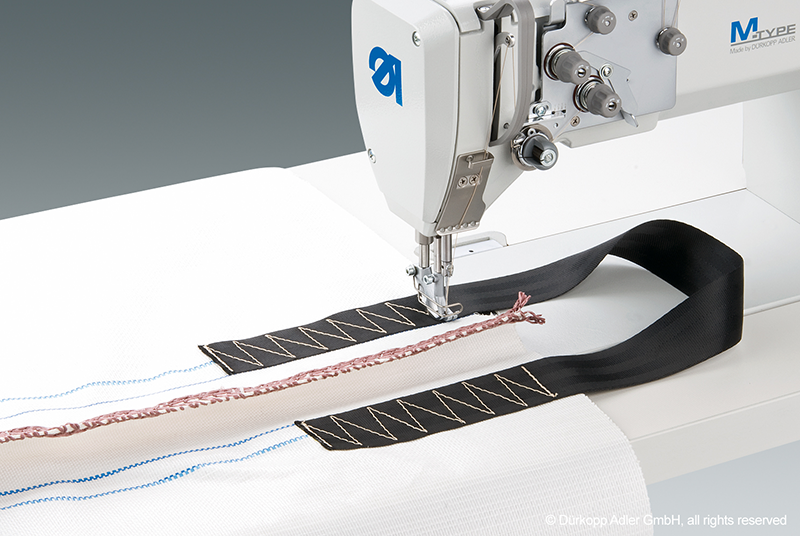

Attaching of lifting belts in the production of large bags

Specification

Features

Subclass Stitch length [mm] max. Stitches/min Sewing material Twin needle
[Needle distance]
Lockstitch (301) Vertical hook, large (L, Ø 26 mm) Vertical hook, extra large (XXL, Ø 32 mm) Bottom feed, needle feed and alternating foot top feed Seam backtacking
867-290020-M 12 3400* Medium - Medium Heavy ZSK BLUE TICK ICON 1 [4-60] ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1   ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 Manual
867-290040-M 12 3400* Medium - Medium Heavy ZSK BLUE TICK ICON 1 [4-60] ZSK BLUE TICK ICON 1   ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 Manual

* Depending on foot stroke

  Sewing foot lift, mechanical, adjusted by knee Sewing foot lift, automatic Stroke of the alternating sewing feet [mm] max. Foot stroke adjustuble by dial Clearance when Sewing/Lifting Additional thread tension, Integrated LED sewing light with dimmer Integrated DA-direct drive Available without DA drive / available with separate motor packages Long arm versions available as a standard [mm] max.
867-290020-M
ZSK BLUE TICK ICON 1 Optional 9 ZSK BLUE TICK ICON 1 A=10 / B=20 ZSK BLUE TICK ICON 1 Manual Optional ZSK BLUE TICK ICON 1 Optional Optional: C=700 / D=125
867-290040-M ZSK BLUE TICK ICON 1 Optional 9 ZSK BLUE TICK ICON 1 A=10 / B=20 ZSK BLUE TICK ICON 1 Manual Optional ZSK BLUE TICK ICON 1 Optional Optional: C=700 / D=125

Technical

Subclass Needle System Needle Size [NM] max. Thread Type* **
[Tkt.] max.
Flat bed machine with clearance [mm] max. Integrated with DAC eco M-TYPE Nominal voltage [V, Hz] Rated power [W] max. Weight, sewing head only [Kg] Power Consumption [kVA] Dimensions (LxWxH) [mm]
867-290020-M 134-35 90-180 10/3 C= 335 / D= 125 ZSK BLUE TICK ICON 1 1x230V, 50/60 Hz 375 55 - 57 1.0 1060x500x1700
867-290040-M 134-35 90-180 10/3 C= 335 / D= 125 ZSK BLUE TICK ICON 1 1x230V, 50/60 Hz 375 55 - 57 1.0 1060x500x1700

* Max. thread size upper thread: Tkt. 10/3, max. thread size bobbin thread: Tkt. 20/3
** Max. thread size upper thread: Tkt. 15/3, max. thread size bobbin thread: Tkt. 40/3
