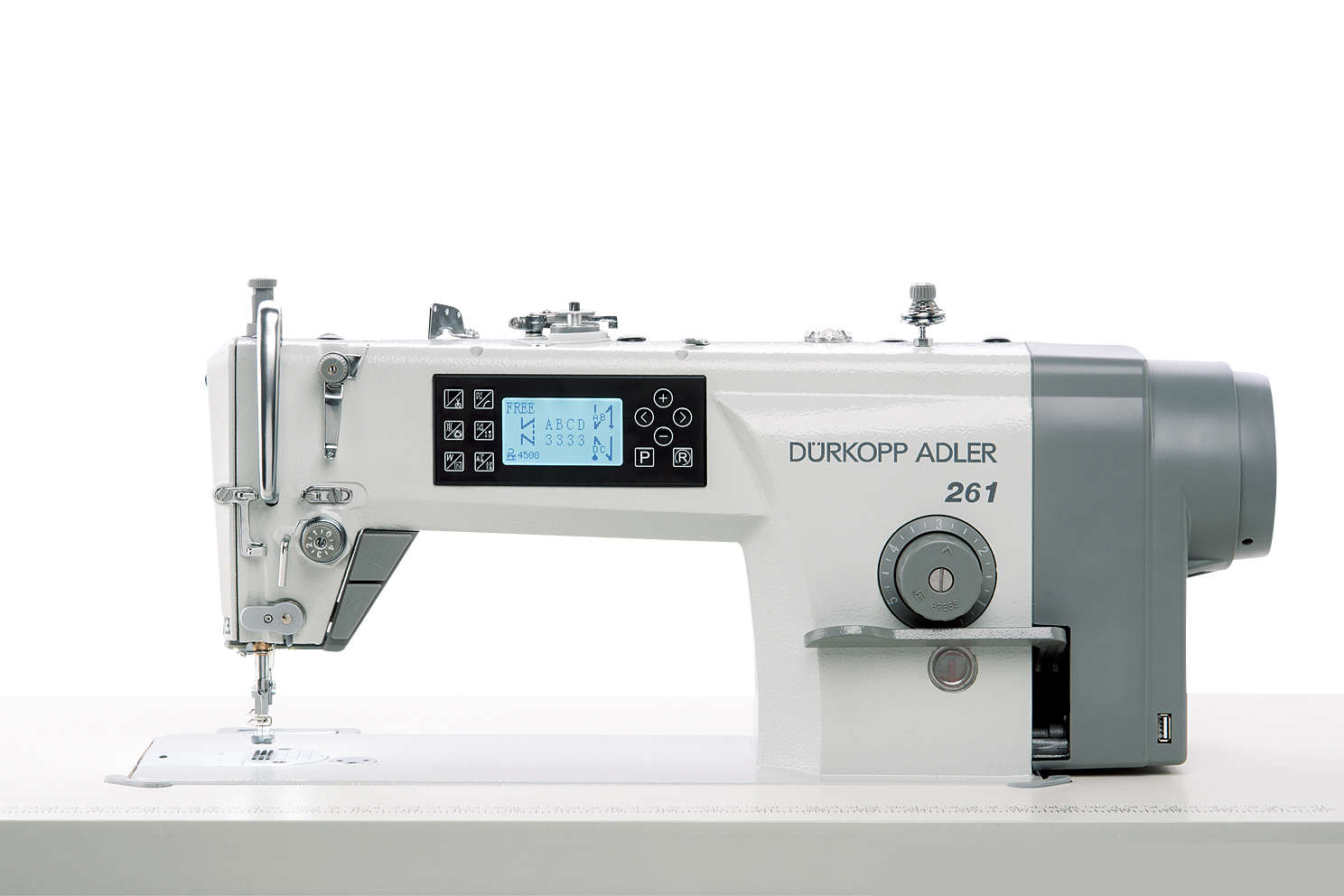

261 140345 01 title leaflet 1261 140345 01 title leaflet 1

Single Needle Automatic Lockstitch

A versatile, high-performance single-needle lockstitch machine with bottom feed and integrated direct drive. Designed for universal use across light to medium‑heavy garment materials, it delivers precision, efficiency and operator ease of use in industrial sewing environments.

Download Brochure
Request a quote

ZSK BLUE TICK ICON 1 Bottom feed system for reliable fabric handling across a wide range of materials.

ZSK BLUE TICK ICON 1 Automatic functions include sewing foot lift, backtacking, and thread trimming, with a short-thread trim (max. 3 mm) available, depending on the subclass.

ZSK BLUE TICK ICON 1 Integrated touch control panel, seamlessly built into the machine arm, for intuitive programming and quick seam selection.

ZSK BLUE TICK ICON 1 Semi‑Dry lubrication for minimal oil use, maintaining a clean workspace and extended machine life.

ZSK BLUE TICK ICON 1 Thread nipper ensures clean and accurate seam starts.

ZSK BLUE TICK ICON 1 Integrated dimmable LED sewing light improves visibility and reduces shadows.

ZSK BLUE TICK ICON 1 Energy-efficient direct drive motor, offering high performance with cost-effective operation.

Key Features & Benefits

Automatic sewing foot lifting, backtacking and thread trimmer/ short thread trimmer with a thread end length of max. 3 mm (depending on the subclass)

Clean workplace due to minimal oil lubrication of the needle bar and the 'semi-dry' lubrication concept

Accurate seam beginning due to the standard thread nipper

Integrated, dimmable LED sewing light as standard

Integrated touch control panel for programming and calling up of seam programs

USB Slot (can be used for charging)

Convincing price-performance ratio

Integrated, dimmable LED sewing light as standard

Examples of use

DA 261 140342 01 A ap ladies wear cmyk 0486DA 261 140342 01 A ap ladies wear cmyk 0486

Assembly Seams

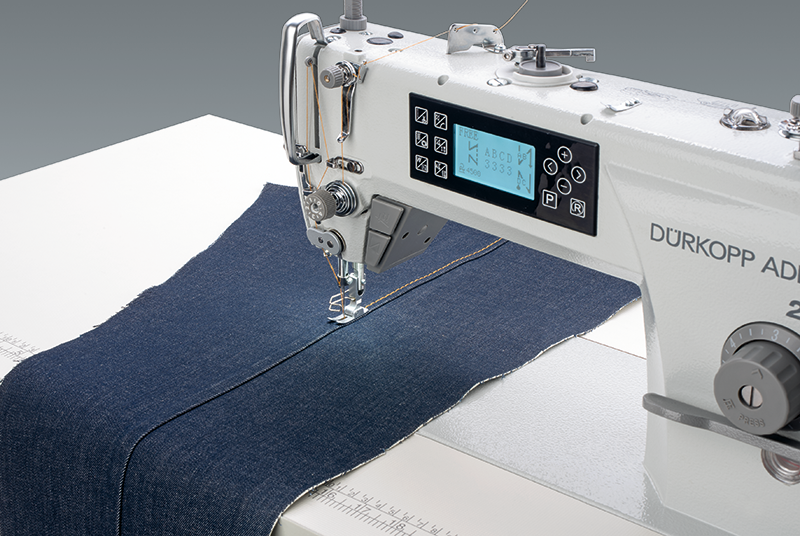

DA 261 160365 01 ap jeans cmyk 0479DA 261 160365 01 ap jeans cmyk 0479

Top Stitching

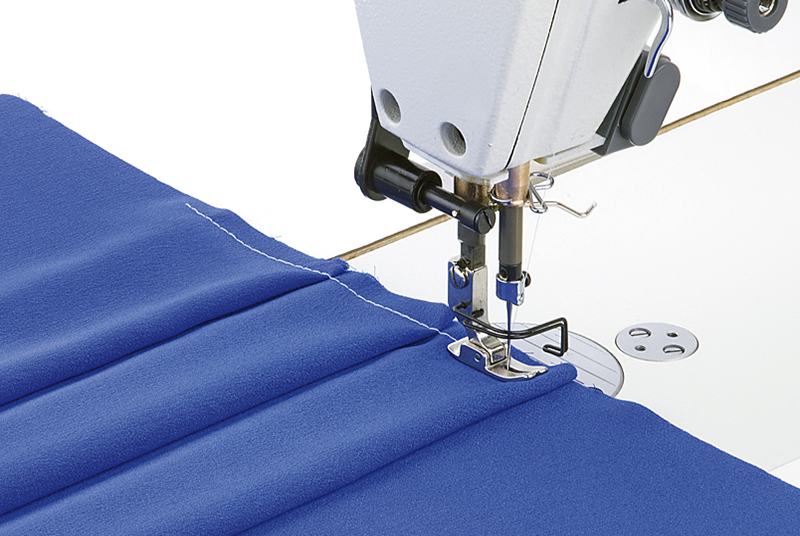

261 150166 ap 3261 150166 ap 3

Stitch down pleats

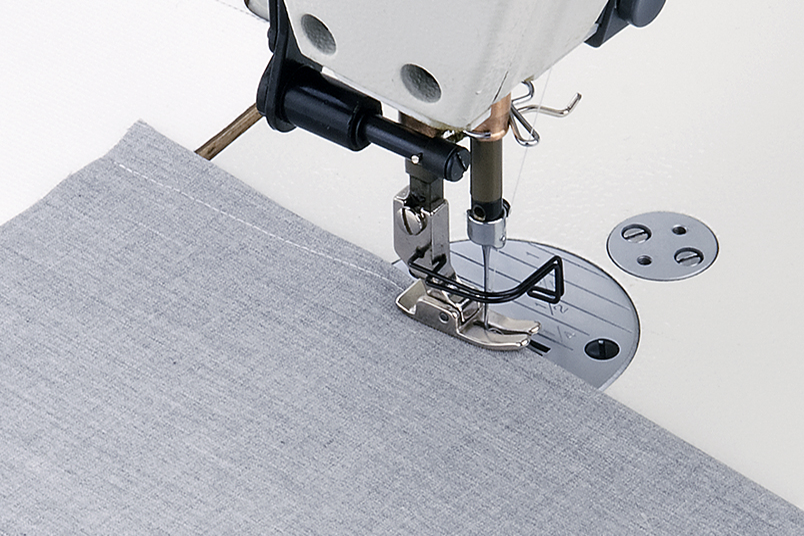

261 150166 ap 2261 150166 ap 2

Sewing Darts

Specification

Features

Subclass Stitch length [mm] max. Stitches/min Sewing material Single needle Lockstitch (301) Horizontal hook, small (S, Ø 22mm) Horizontal hook, large (L, Ø 26 mm) Semi-Dry-Machine Head Bottom Feed
261-140342-02 5 5000 Light - Medium ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1   ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1
261-140345-02 5 5000 Light - Medium ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1   ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1
261-160362-02 7 4000 Medium - Medium Heavy ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1   ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1
Subclass Thread trimmer Short thread trimmer Seam backtacking Sewing foot lift, automatic Thread nipper for a neat seam beginning Clearance when lifting, electro magnetic [max.] Clearance when lifting, with knee switch [max.] Program control, integrated touch panel Integrated LED sewing light with dimmer DA-sewing drive
261-140342-02 5mm   Automatic ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 9mm 12mm ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1
261-140345-02   3mm Automatic ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 9mm 12mm ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1
261-160362-02 5mm   Automatic ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 9mm 12mm ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1 ZSK BLUE TICK ICON 1

Technical

Subclass Needle bar stroke [mm] max. Needle System Needle Size [NM] max. Thread Type* **
[Tkt.] max.		 Flat bed machine with clearance [mm] max. Nominal voltage [V, Hz] Rated power [W] max. Weight, sewing head only [Kg] Weight, complete [Kg] Packaging size (LxWxH) [mm]
261-140342-02 31 134 70-90 50/3 C= 285 / D = 130 1x230V, 50/60 Hz 550 36 43 713x250x558
261-140345-02 31 134 70-90 50/3 C= 285 / D = 130 1x230V, 50/60 Hz 550 36 43 713x250x558
261-160362-02 35 134 90-110 30/3 C= 285 / D = 130 1x230V, 50/60 Hz 550 36 43 713x250x558

* Max. thread size upper thread: Tkt. 10/3, max. thread size bobbin thread: Tkt. 20/3
