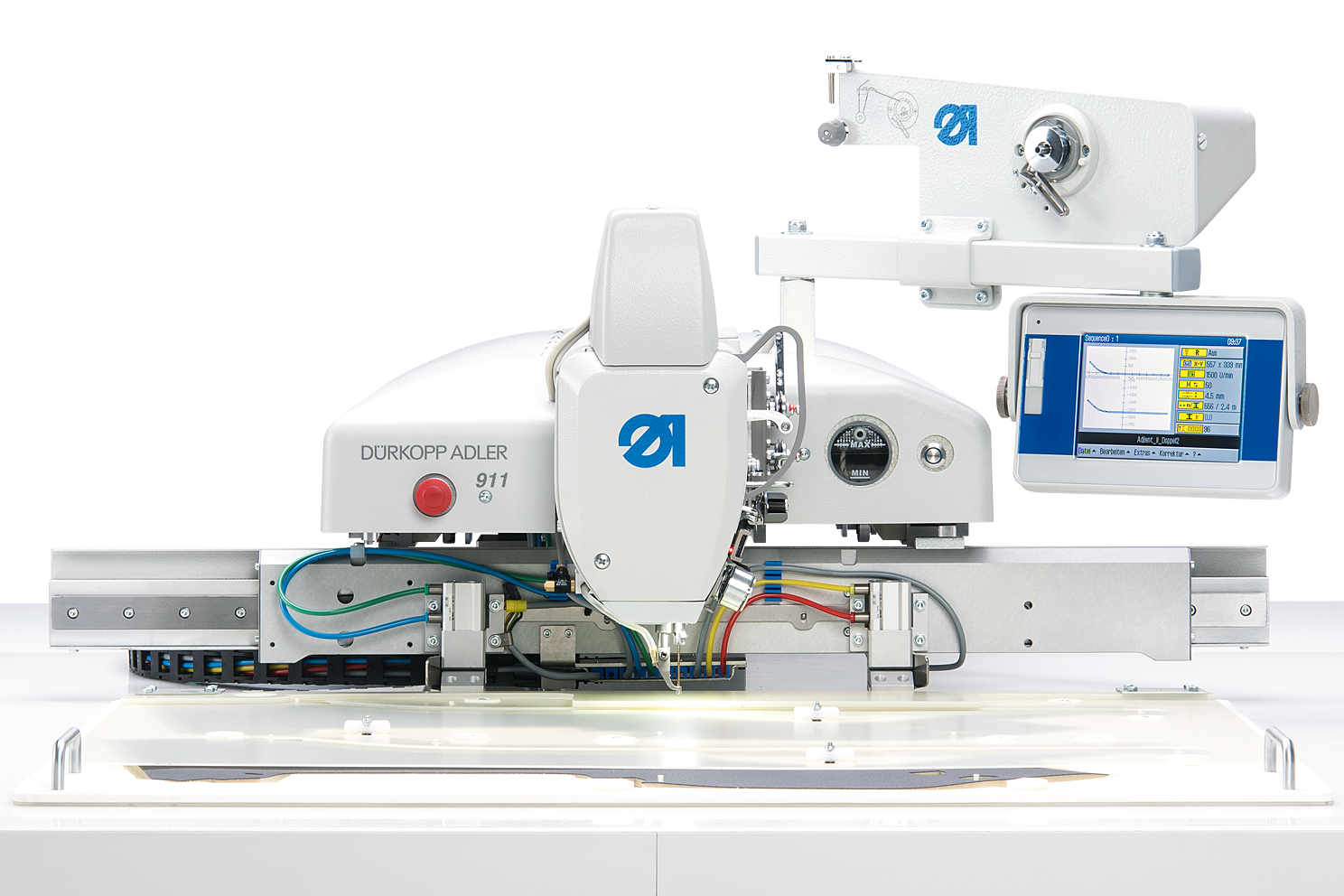

Durkopp Adler 911 Series

CNC Pattern Stitcher

A versatile range of CNC-controlled pattern stitchers engineered for reproducible safety, functional and decorative seams across technical textiles, leather goods, webbing and industrial applications. The 911 series features advanced clamp technology, intuitive control software and robust M-TYPE sewing mechanics to deliver high-quality, consistent results with excellent productivity.

Automated CNC precision: Reproducible pattern sewing with high seam quality and reduced manual intervention.

Flexible material clamp systems: Exchangeable clamps enable partial or full overlapping operations for high machine utilisation and output.

Reinforced M-TYPE technology: Proven lockstitch performance with low maintenance and reliable, repeatable results.

Intuitive control and programming: Touchscreen menu navigation with teach-in mode for easy creation and adjustment of seam programs.

Advanced control system: Modern DAC comfort control ready for external system integration, networking and expanded memory capacity.

High bobbin capacity: XXXL vertical hook and thread consumption monitoring minimises downtime and supports longer runs.

Electronic features: Programmable thread clamping, thread trimming and automatic bobbin change alerts as standard.

Broad application range: Suitable for safety and functional seams in technical textiles, webbing and cargo restraints, plus decorative stitching.

Key Features & Benefits

Easy handling of the machine function by means of intuitive menu navigation at the touchscreen control panel.

DACcad-Professional software specially developed for Durkopp Adler to generate and edit the seam programs for the CNC-units of the DA-Group.

An electronic thread clamping device for a neat seam beginning on the upper side of the sewing material is standard equipment.

High bobbin thread capacity by XXL vertical hook Ø 32 mm / XXXL vertical hook Ø 40 mm. (model dependent)

Thread breakage identification with automatic sewing stop.

High machine utilisation due to partial or full overlapping operation when using an exchangeable clamp.

Trouble-free processing of differeing material plies by programmable troke adjustment.

New control system 'DAC comfort' - prepared for the connection to external control systems (poka Yoke) and for networking in a local network. (Selected models only).

Low maintenance due to approved M-TYPE technology.

No manual rework necessary.

Up to 12 mm long stitches for standard seams and decorative topstitching

The extremely high sewing foot lift up to 25 mm facilitates the feeding and removing of bulky workpieces

911-210 Examples of use

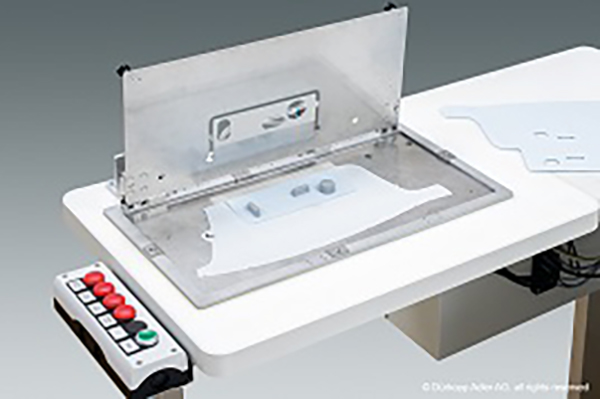

Sewing operations in the airbag production

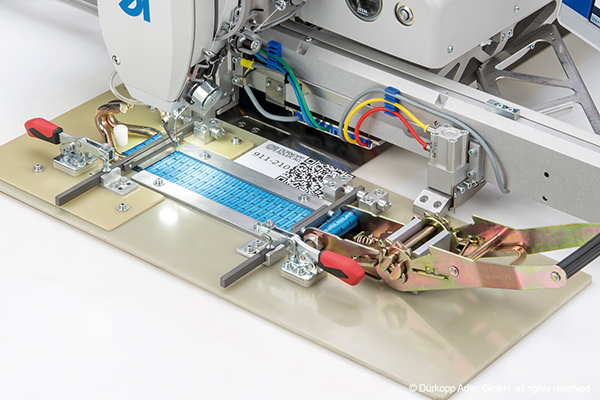

Load and lashing straps

Small parts

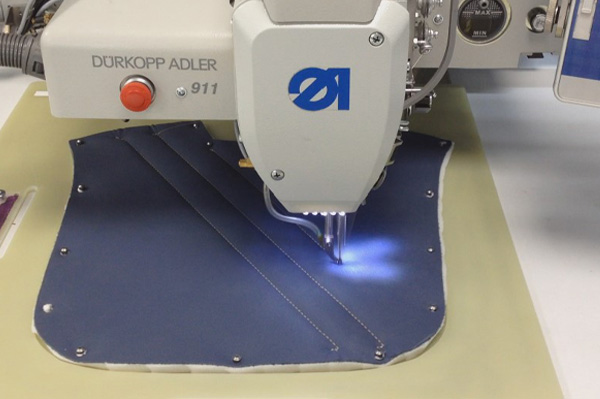

Decorative stitching on car seats

911-211 Examples of use

Climbing rope

Automotive seat belts

Load and lashing straps

Decorative stitching on car seats

Specification

Features

= Standard = Optional

	911-210-1055-10	911-210-3020-10	911-210-6020-10	911-210-6055-10	911-210-8055-10	911-211-2010-10	911-211-3020-10	911-211-6020-10
Stitch length [mm] max.	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7	0.1 - 12.7
Stitches/min.	1200	2700	2500	2000	1200	1400	1400	1400
Sewing Material	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy	Medium - Medium Heavy	Medium Heavy - Heavy	Medium Heavy - Heavy	Medium Heavy - Heavy
Sewing field size [mm] max.	1000 x 550	300 x 200	600 x 200	600 x 550	800 x 550	200 x 100	300 x 200	600 x 200
Single needle
Lockstitch (301)
Vertical hook, extra large (XXL, Ø 32 mm)
Thread trimmer [mm]	5	15	15	15	15	15	15	15
Thread burner below and above the throat plate
Sewing foot lift, automatic
Piece counter/ Bobbin capacity counter
Thread nipper for a neat seam beginning
NSB – “Neat Seam Beginning”
Clearance when Sewing/Lifting [mm] max.	A = 10 / B = 20	A = 10 / B = 20	A = 10 / B = 20	A = 10 / B = 20	A = 10 / B = 20	A = 10 / B = 20	A = 10 / B = 20	A = 10 / B = 20
Programmable thread tension
Storage capacity for seam patterns max.	199	199	199	199	199	199	199	199
Storage capacity for stitches per seam pattern max.	20000	20000	20000	20000	20000	20000	20000	20000
Number of sequences max.	20	20	20	20	20	20	20	20
Seam patterns per sequence max.	30	30	30	30	30	30	30	30
Program control, operating panel with graphic display and touch screen
Integrated LED sewing light with dimmer
Oil maintenance indicator
Special manufacture

* Depending on foot stroke

** Approx. length of remaining thread

Technical

	911-210-1055-10	911-210-3020-10	911-210-6020-10	911-210-6055-10	911-210-8055-10	911-211-2010-10	911-211-3020-10	911-211-6020-10
Air requirement per stroke / Air pressure	0,4 / 6	0,4 / 6	0,4 / 6	0,4 / 6	0,4 / 6	0,4 / 6	0,4 / 6	0,4 / 6
Needle system	134-35	134-35	134-35	134-35	134-35	328/794	328/794	328/794
Needle size	90-180	90-180	90-180	90-180	90-180	120-230	120-230	120-230
Thread Type* ** [Tkt.] max.	80/3 - 15/3*	80/3 - 15/3*	80/3 - 15/3*	80/3 - 15/3*	80/3 - 15/3*	30/3 - 8/3**	30/3 - 8/3**	30/3 - 8/3**
Dimensions (Length x Width x Height) [mm]	1770 x 1925 x 1700	1200 x 1200 x 1700	1200 x 1200 x 1700	1760 x 1360 x 1700	1770 x 1725 x 1700	1200 x 1500 x 1700	1600 x 1500 x 1700
Nominal voltage [V], [Hz]	1x230V, 50/60 Hz	1x230V, 50/60 Hz	1x230V, 50/60 Hz	1x230V, 50/60 Hz	1x230V, 50/60 Hz	1x230V, 50/60 Hz	1x230V, 50/60 Hz	1x230V, 50/60 Hz
Power consumption [W]	1	1	1	1	1	1	1	1
Weight, complete [Kg]		225	230	275	280	220	230

* Max. thread size upper thread: Tkt. 10/3, max. thread size bobbin thread: Tkt. 20/3
** Max. thread size upper thread: Tkt. 15/3, max. thread size bobbin thread: Tkt. 40/3
