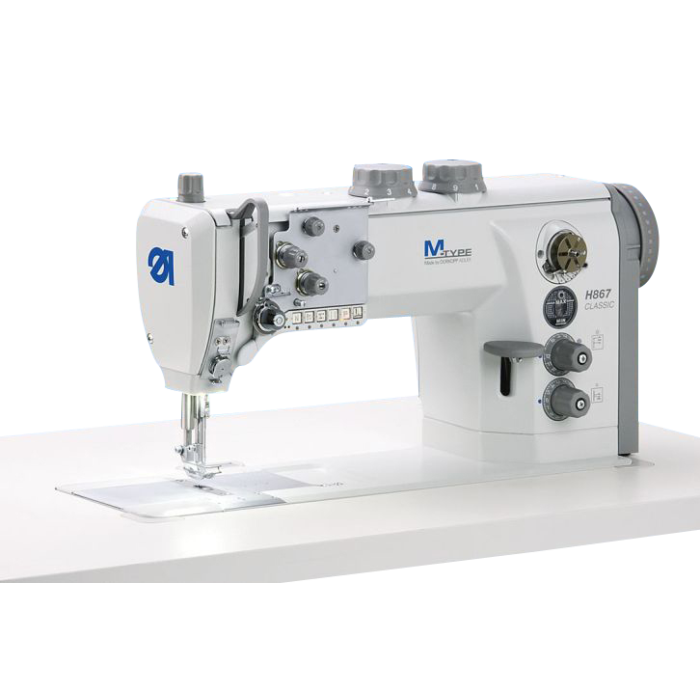

Durkopp Adler H867-190362

£0.00 £0.00

SKU

DAH867-190362

M-TYPE H867 CLASSIC Goldline -flatbed machine as reinforced version

Assembly and decorative seams in medium to heavy-weight workpieces

We will match any like-for-like quote.

M-TYPE H867 CLASSIC Goldline -flatbed machine as reinforced version

Field of application:

Assembly and decorative seams in medium to heavy-weight workpieces

Performance features:

Max. stitch length 12.0 mm

Thread sizes up to max. Tkt. 8/3

Max. sewing speed 1800 stitches/min

Overview:

High efficiency due to automatic functions like thread trimming, automatic backtacking, and pneumatic sewing foot lift

Powerful and effective feeding system with bottom feed, needle feed, and alternating top feed

The extremely high sewing foot lift up to 25mm facilitates the feeding and removal of bulky workpieces

The sewing foot stroke up to 9m allows the safe climbing over material piles with large differences in height

Optimised hook system with 3XL bobbin (40mm) for thread sizes up to Tkt. 8/3 max.

Robust thread trimmer guarantees a safe and clean cutting of extremely thick sewing threads

Sewing drive with networkable 'DAC Classic' control incl. operating panel OP1000 - industry 4.0 ready

Also available as twin needle machine (H867-290362)

Also available as ECO version (single needle or twin needle H867-190060 / H867-290060)

Also available as Silverline version (single needle or twin needle H867-190162 / H867-290162)
