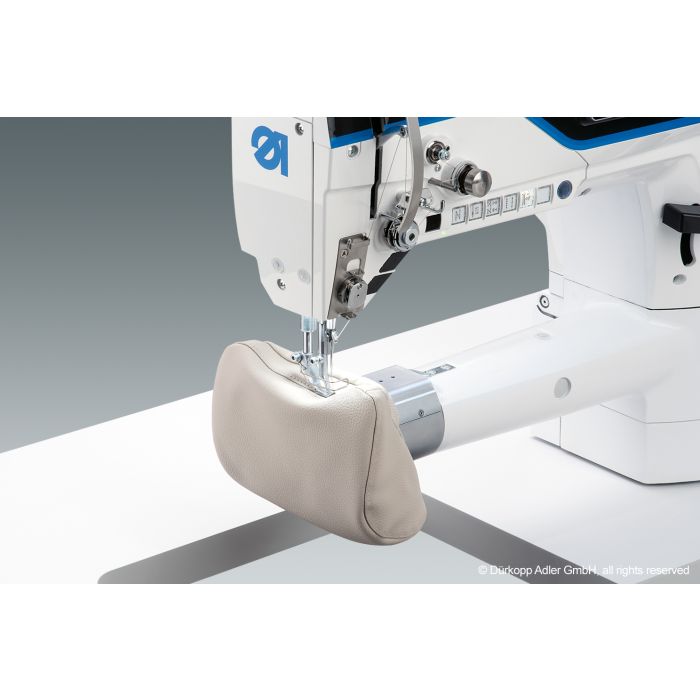

Durkopp Adler D869-180922-01 DELTA e-con

M-TYPE DELTA e-con - The single needle cylinder arm machine with vertical hook for reproducible seams on three-dimensional workpieces

Field of application:

Reproducible topstitching seams for in tubular work­ pieces

Performance features:

• Max. stitch length 9 mm
• Max. sewing speed 2,800 stitches/min.
• Max. alternating sewing foot stroke 9 mm
• Max. sewing foot lift 16 mm
• Remaining thread length of ~ 15 mm

Overview:

• e-con technology - for efficient, energy saving and sustainable sewing
• Integrated material thickness detection (MTD) for the automatic optimization of sewing parameters during the sewing process
• Digitally programmable setting elements: Stitch length, thread tension, top feed stroke, sewing foot lift, sewing foot pressure
• Intuitive operation through the Commander Delta control panel with the possibility to make cus­tomer-specific adjustments to the user interface
• Enlarged clearance of 350 mm x 128 mm
• Electronically driven edge guides reduce set-up times and increase process reliability by automati­cally moving to the individually programmed dis­tances and heights (optional)
• Easy and precise needle positioning due to elec­tronical handwheel
• Improved sewing results due to new sewing kine­matics, especially for thinner sewing materials
• Connection of industrial sewing machines in pro­duction possible using QONDAC NETWORKS
