Durkopp Adler 869-180322-M

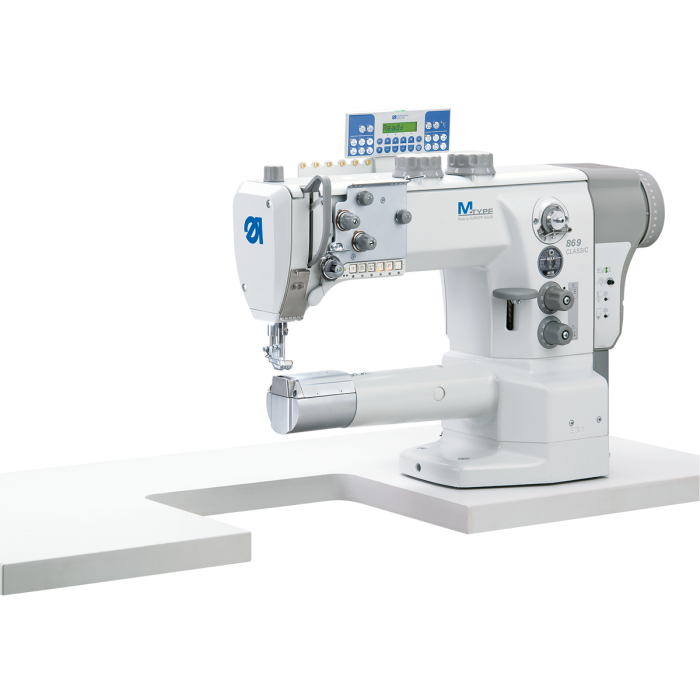

M-TYPE 869-M CLASSIC Goldline - cylinder arm machine with vertical hook

Field of application:

Close to the edge topstitching seams in tubular work­ pieces

Performance features:

•  Thread sizes up to Tkt. 10/3
• Max. stitch length 9 mm
• Max. sewing speed 2,800 stitches/min.

Overview:

• Integrated direct drive with networkable "DAC classic" control incl. operating panel OP1000 - Industry 4.0 "ready"
• Hook technology allows the processing of extreme sewing thread sizes up to max. Tkt. 10/3
• Disconnectable bottom feed stroke for binding op­erations
• Solid thread trimmer with a remaining thread length of 15 mm only
• Excellent stitch pattern, constantly tight stitch formation, even with large stitch lengths and extremely thick thread sizes
• The high top feed stroke facilitates sewing over thick spots
• The high sewing foot lift facilitates the feeding and removal of bulky workpieces
• Lubricating system with adjustable hook lubrication
• Equipment features corresponding to the M-TYPE CLASSIC version like thread trimmer, automatic backtracking, pneumatic sewing foot lift, integrated LED sewing lamp and maintenance indicator
• Also available as CLASSIC Silverline (869-180122-M)
